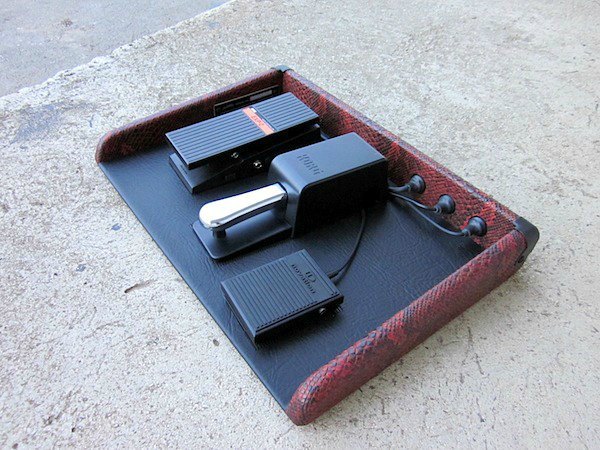

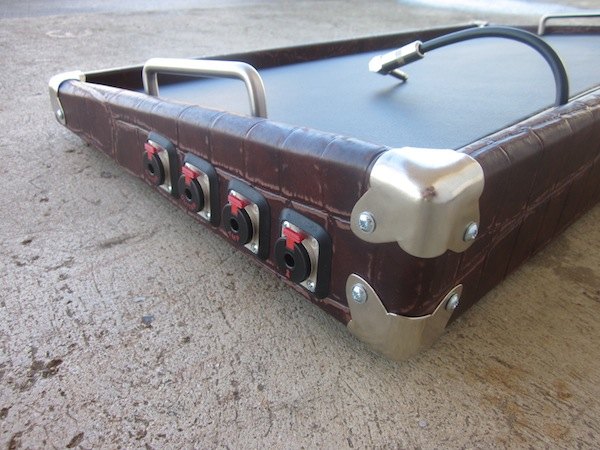

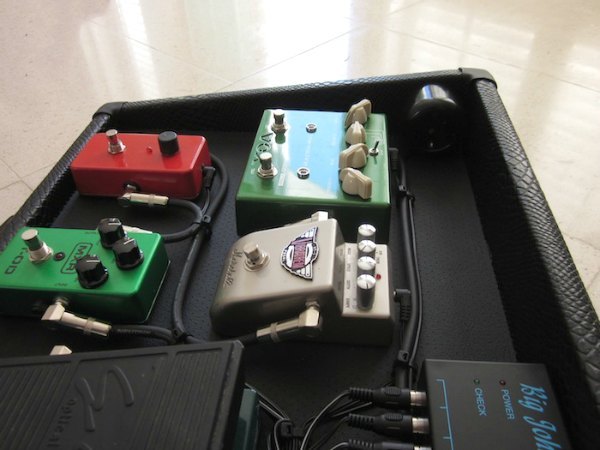

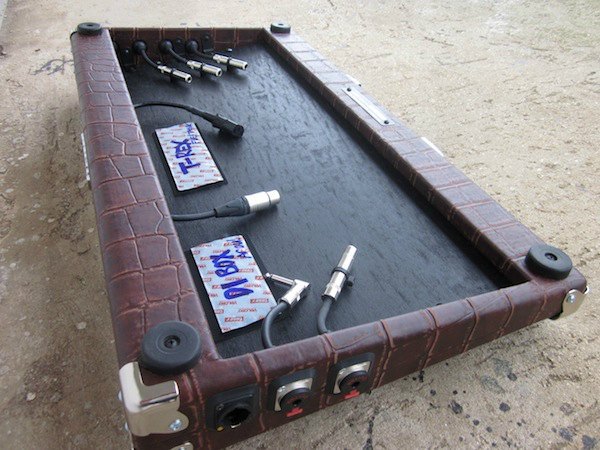

Pedalboard

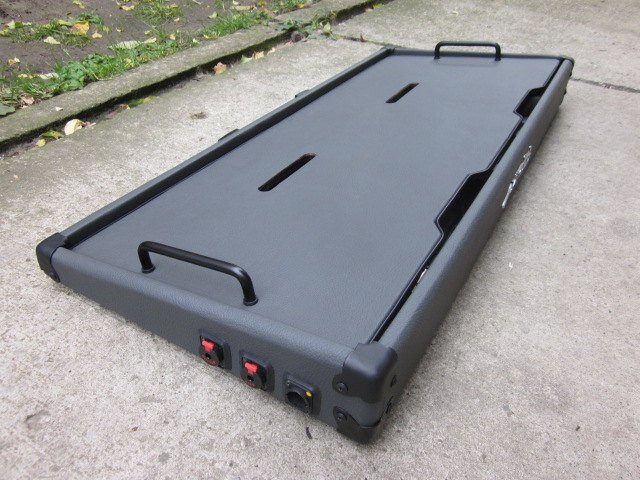

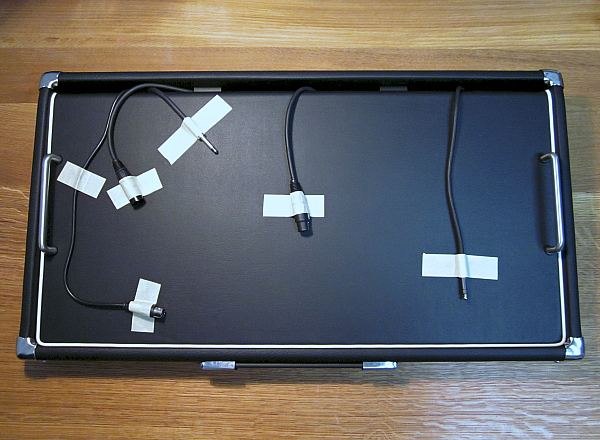

Pistola manufactures three standard size pedalboards – P63, P75 and P91 – and custom size pedalboards. Angled or flat. All pedalboards are made to customer specifications.
SizeThree standards & your own
Need something else? Pistola Custom Size – design the size you want.

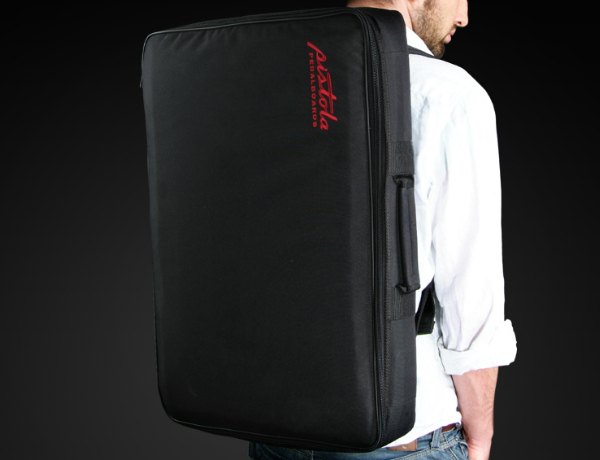

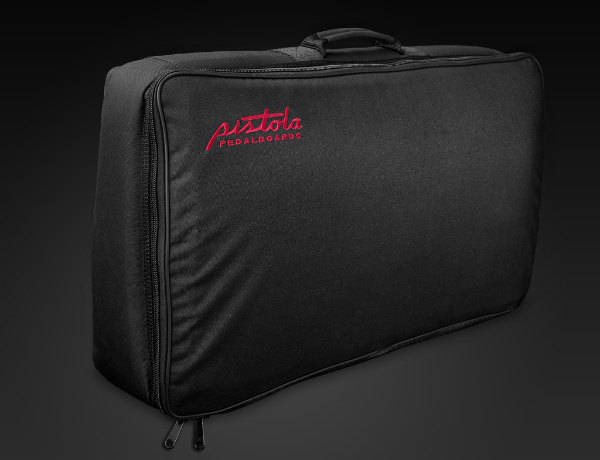

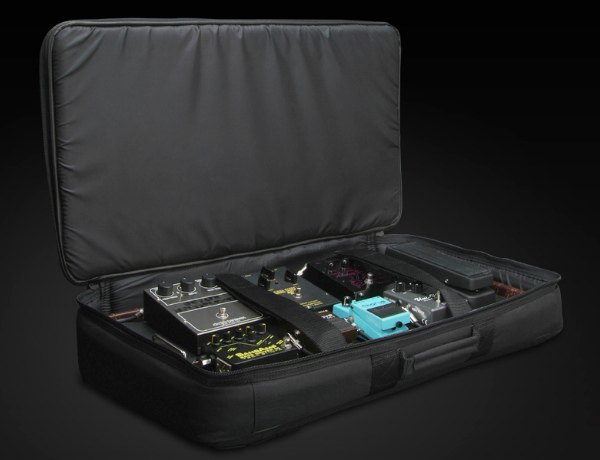

TransportPistola Bag

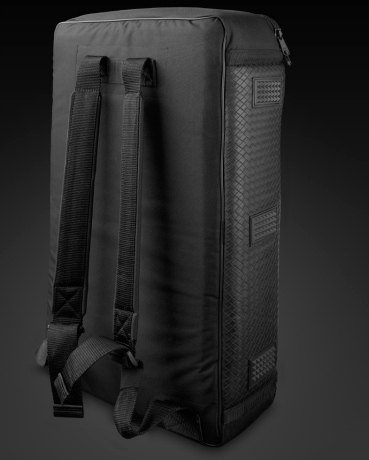

Pistola Bags are high resistant pedalboard bags for daily use. Minimalist design.
- Fully protective 20 mm hard-foam all around
- Water resistant black Cordura 600
- Adjustable and padded shoulder straps
- Velcro straps inside to fix the pedalboard
- Red logo embroidery “Pistola Pedalboards” on cover
- Custom bag orders possible · Handmade in Europe

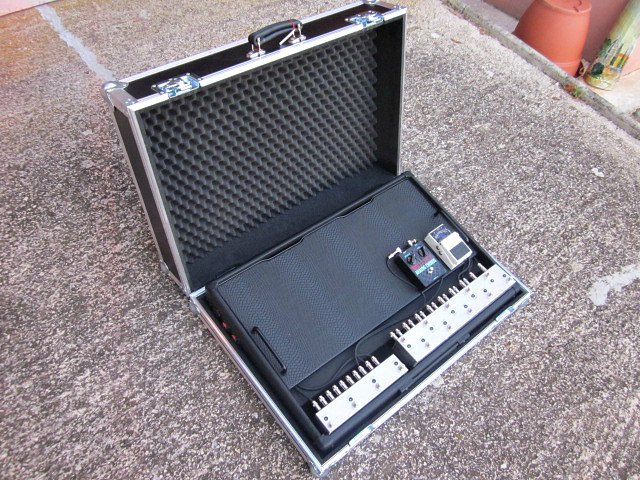

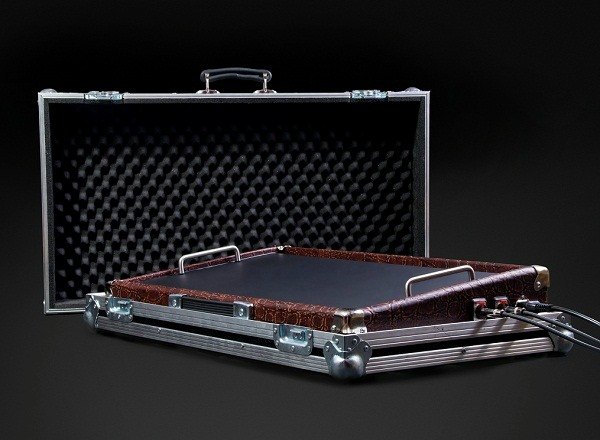

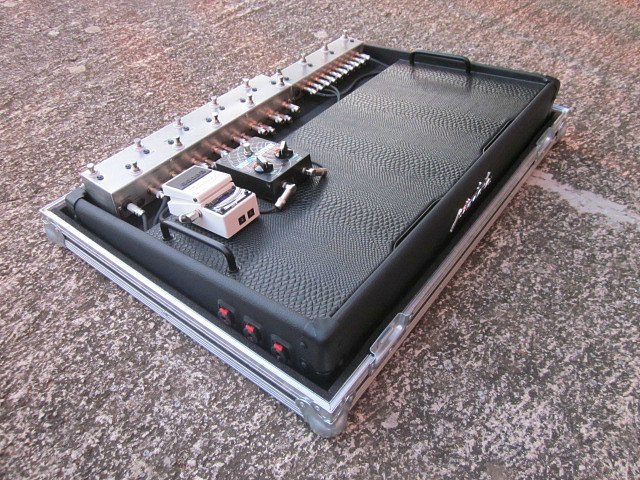

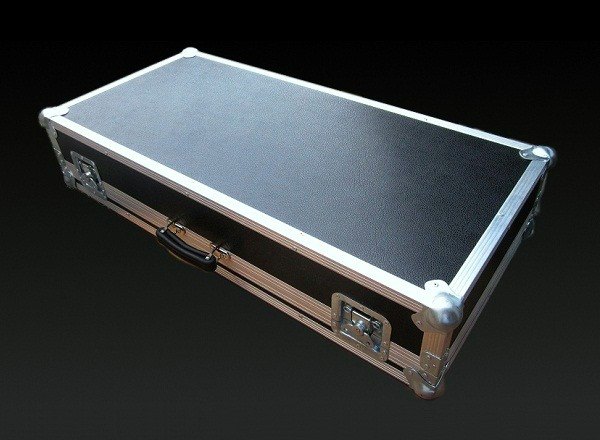

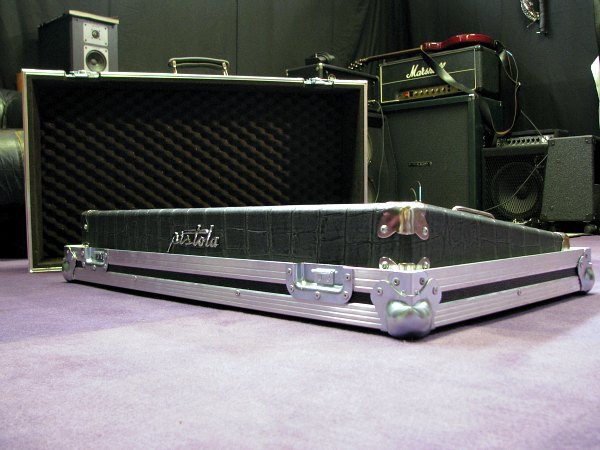

On tourPistola Case
Pistola Cases are high quality flight cases for the guitar player on tour. Great protection for the pedalboard and pedals.
- Black laminated birch plywood
- 4 lockable butterflies · heavy-duty corners
- Leather handle
- 10 mm black foam, 45 mm black egg box foam on top
- Custom case orders possible · German handcraft

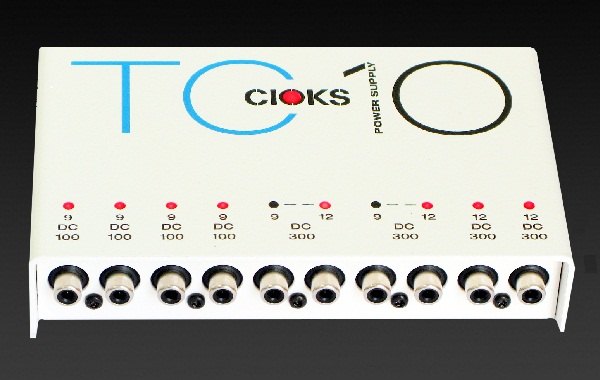

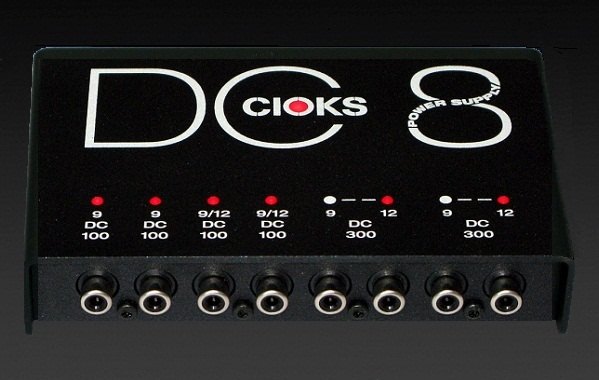

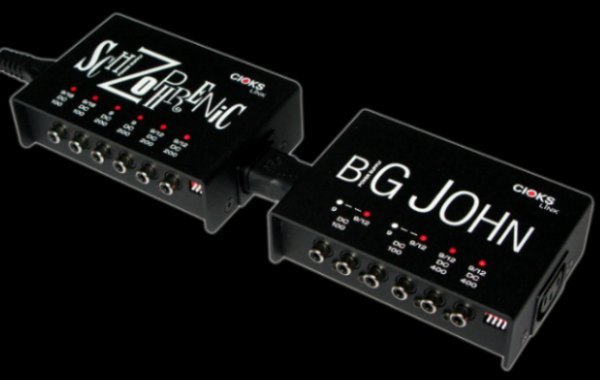

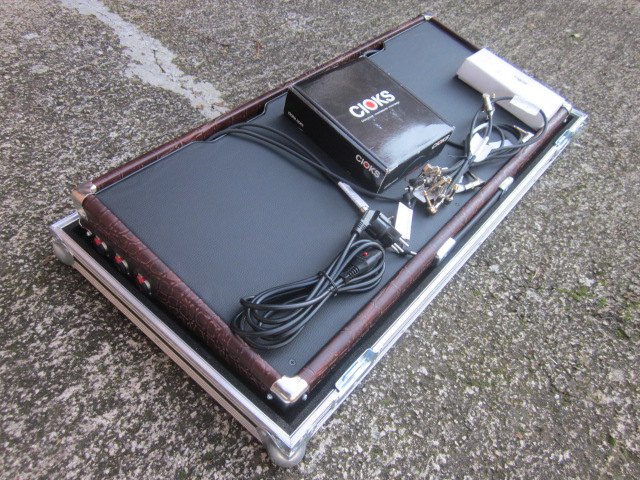

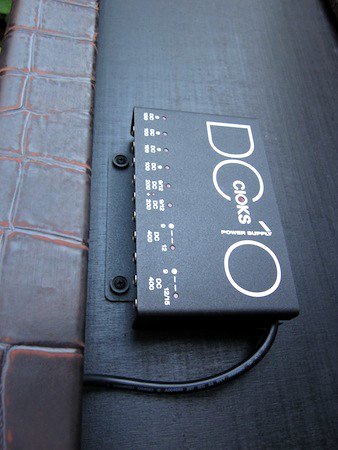

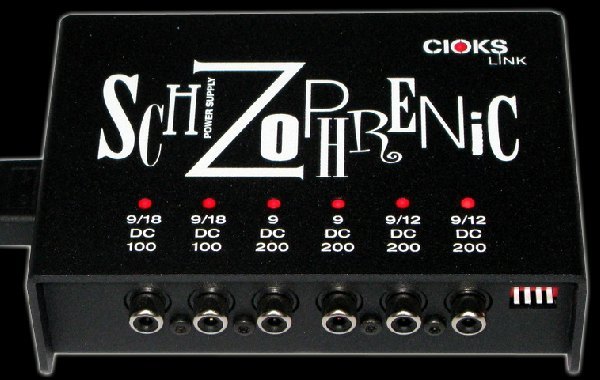

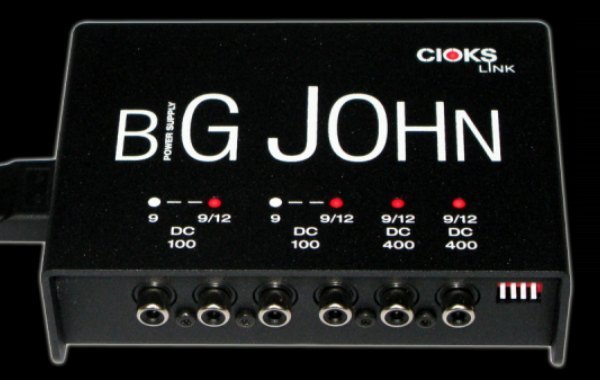

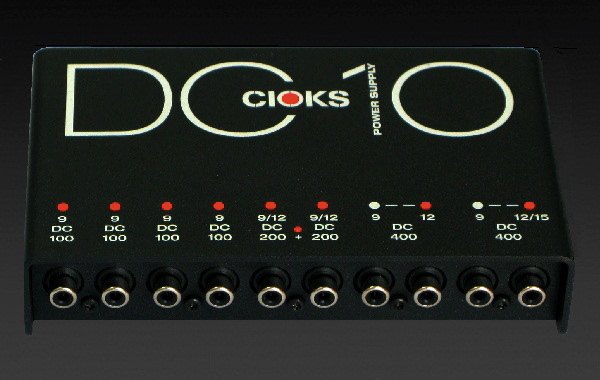

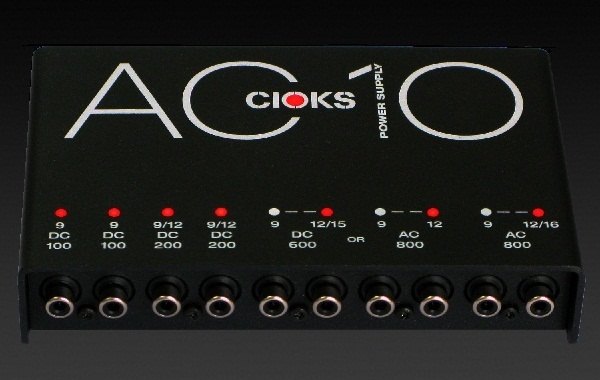

PowerCioks™ Power Supply

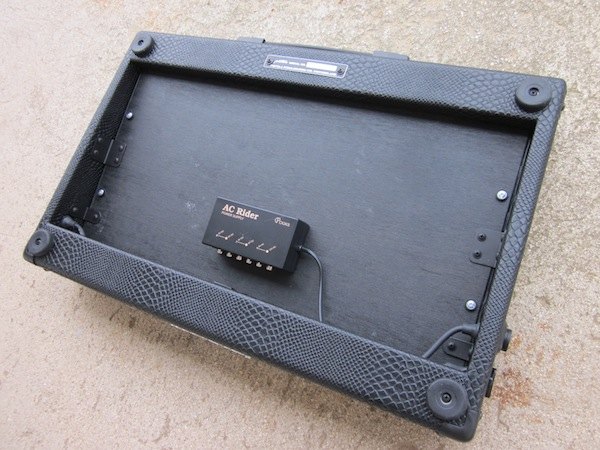

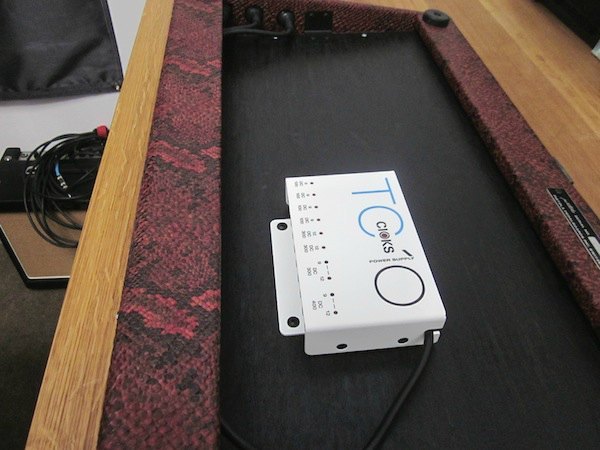

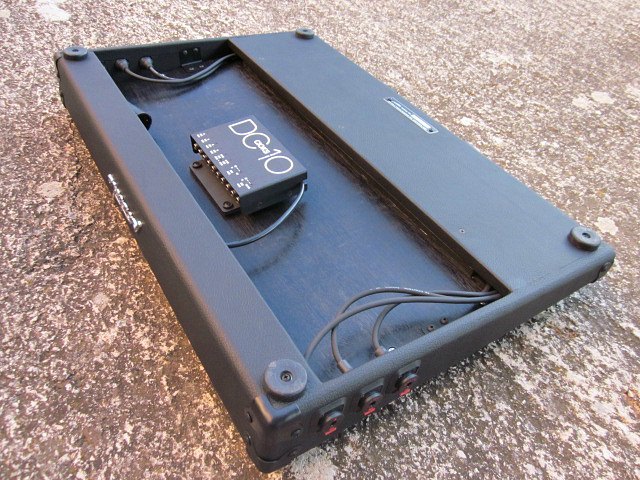

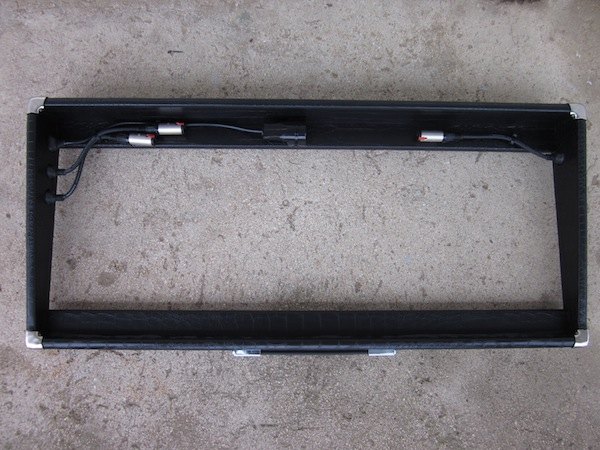

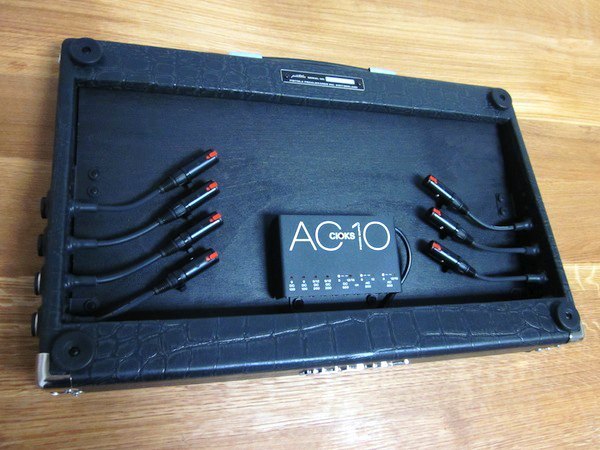

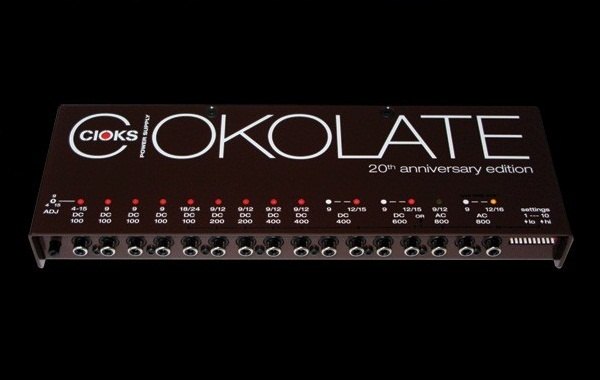

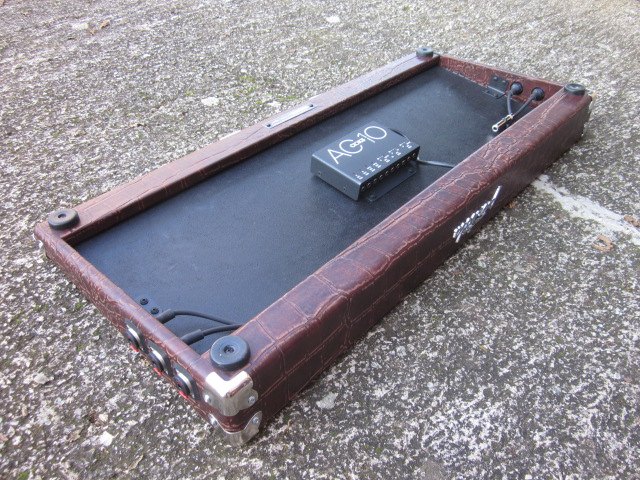

Cioks™ power supplies are compact, light and quality constructed. Short circuit protected, LED status indicators, equipped with Cinch/RCA sockets. Power supplies are powered through the pedalboard power socket and we fix them under the pedalboard. Flex cables are included with every Cioks power supply.

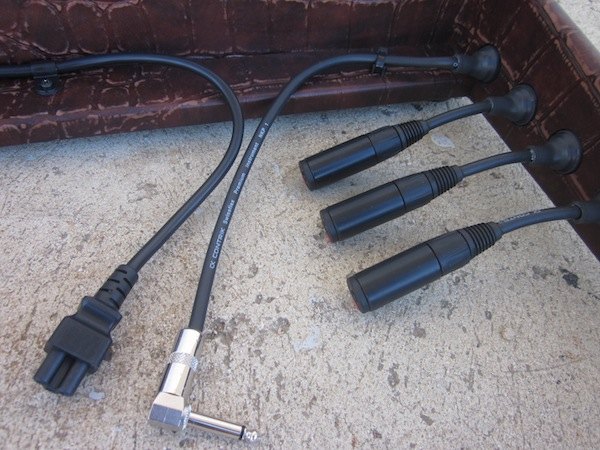

CablesFlex Cable
A great selection of flex cables with different plug types and lengths (30, 50 or 80 cm) is available. Connected to the power supply by RCA/Cinch sockets, they are designed to match about every effect pedal on the market.

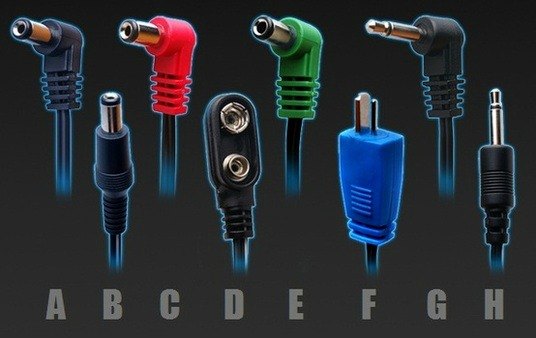

Standard Flex Cable
- A
- 2.1 mm angled, centre negative, BOSS™ standard
- B
- 2.1 mm, straight version of A
- C
- 2.1 mm, as A but centre positive
- D
- Battery clip
- E
- 2.5 mm, centre positive
- F
- 2-pin DIN
- G
- Mini-jack
- H
- Mini-jack, straight version of G

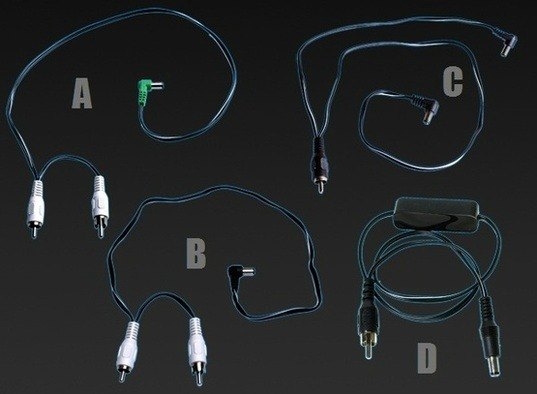

Special Flex Cable
- A
- Stacking two outlets together, e.g. 24 V plus 18 V for 40 V EHX pedals, 2.5 mm plug.
- B
- Stacking two outlets, e.g. 9 V plus 9 V for 18 V, BOSS™ 2.1 mm plug.
- C
- One outlet powers 2 effect pedals, with 2 × BOSS™ 2.1 mm plugs.
- D
- Booster flex cable doubling the voltage, e.g. 18 V from a single 9 V outlet, 2.1 mm plug.

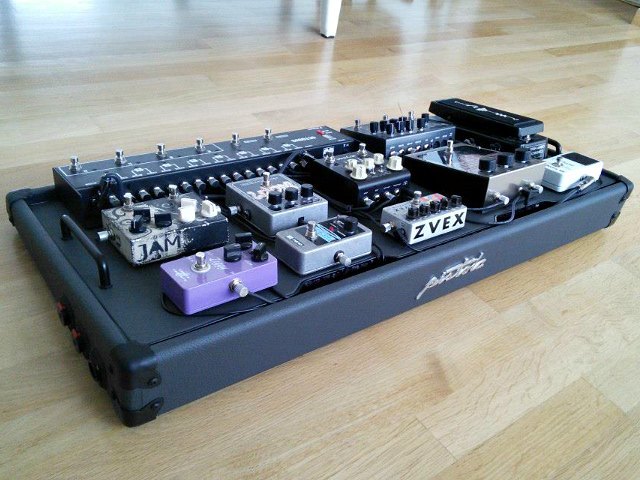

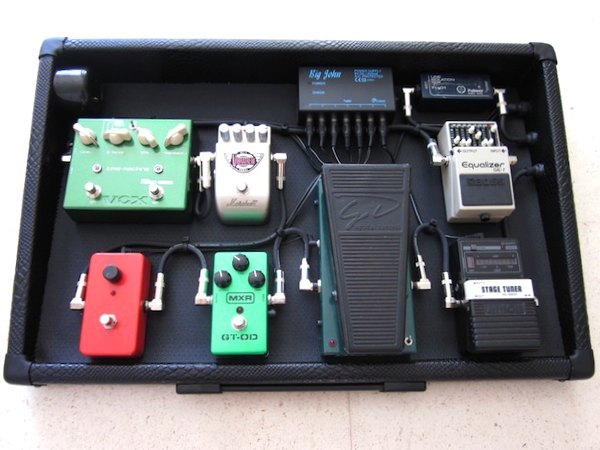

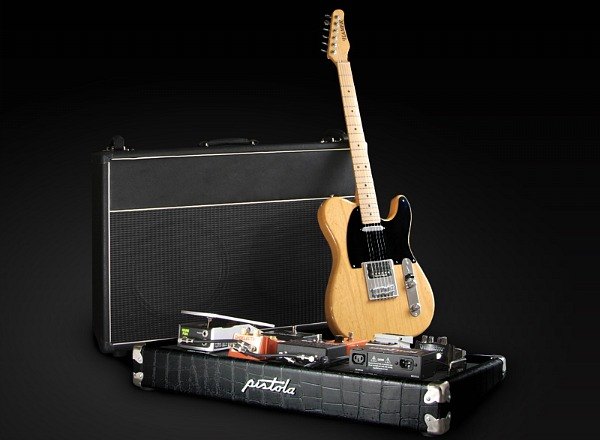

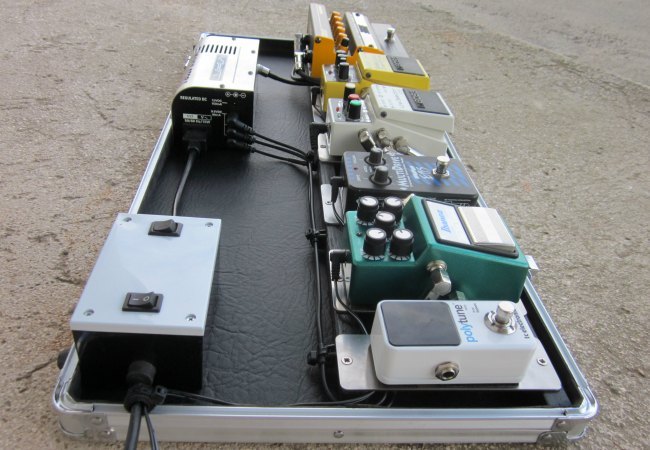

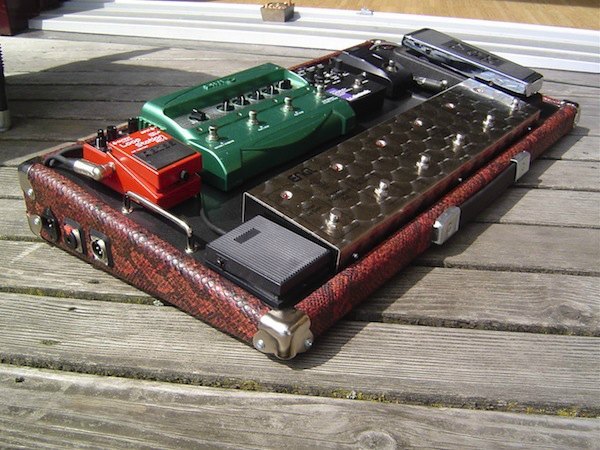

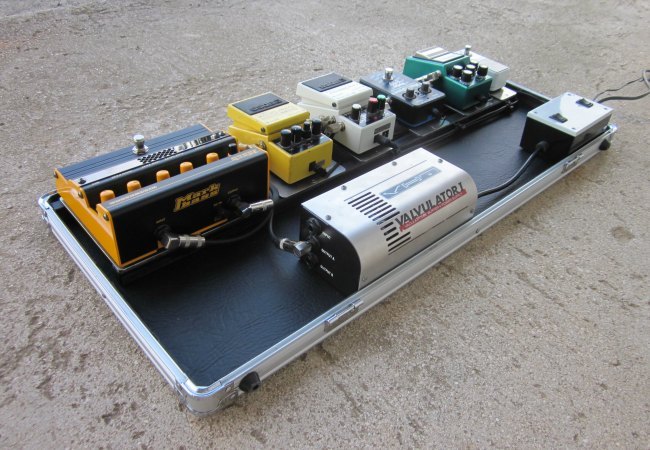

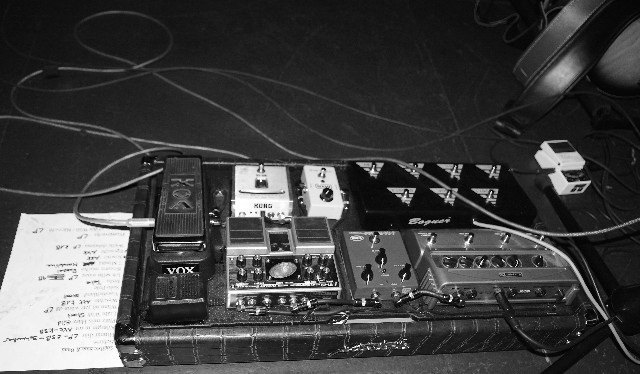

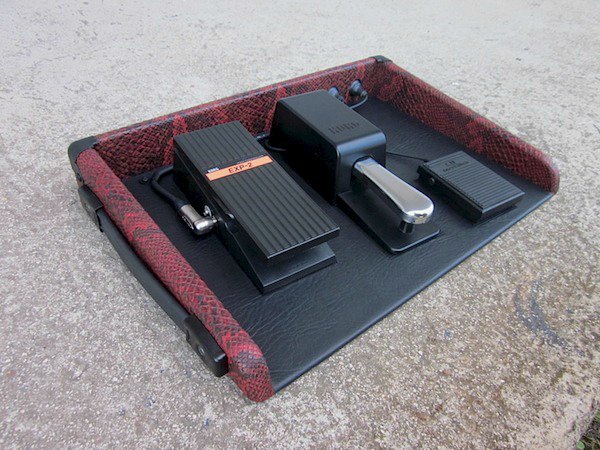

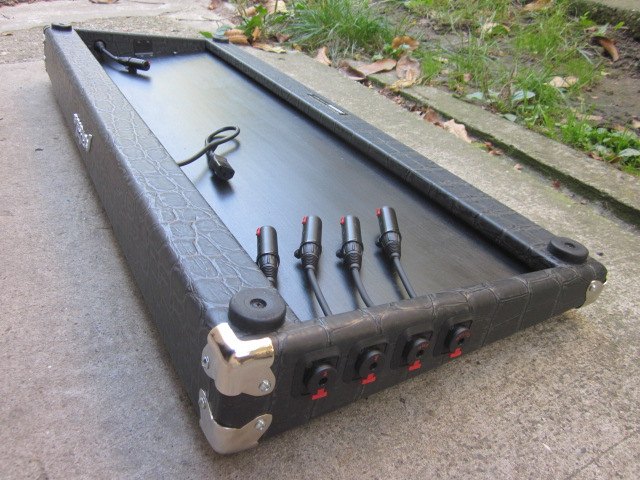

GalleryPistola Pedalboard™

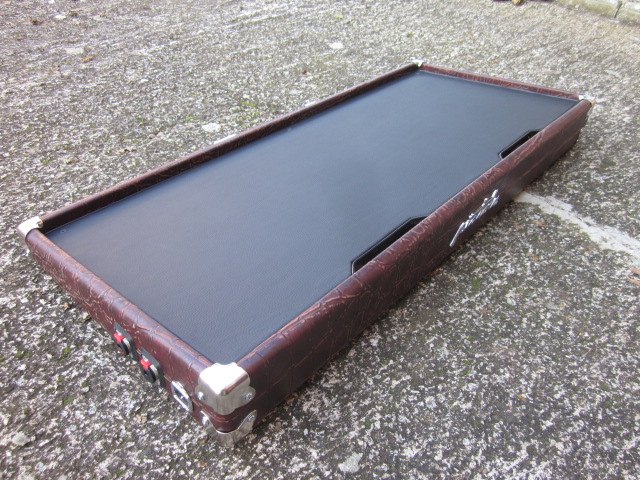

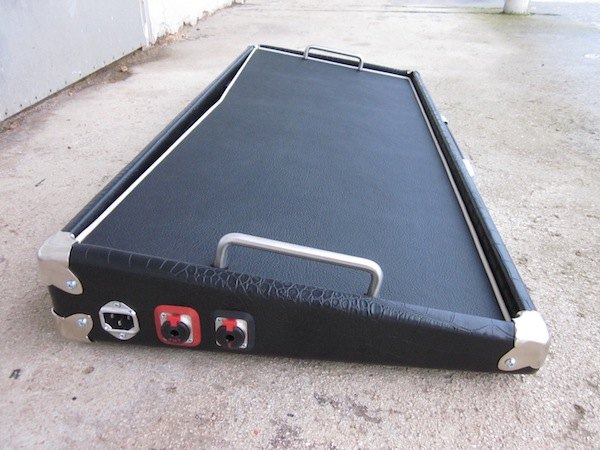

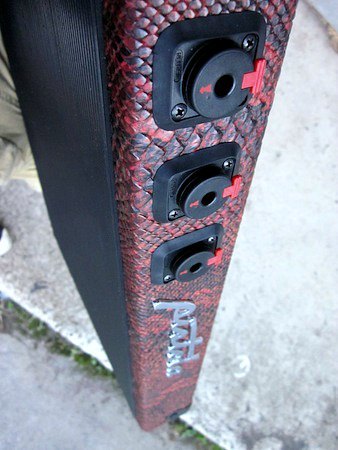

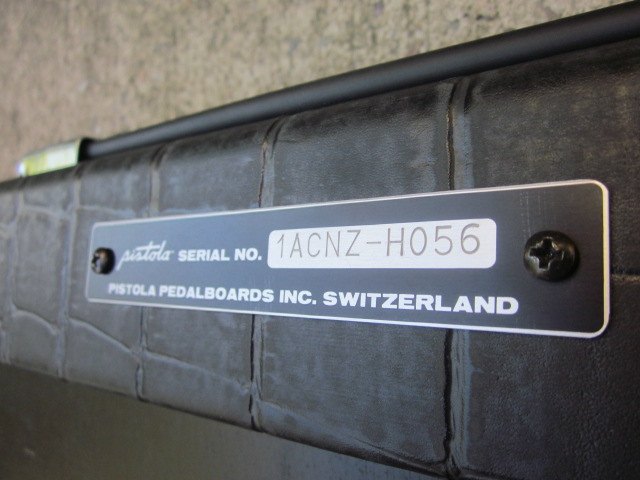

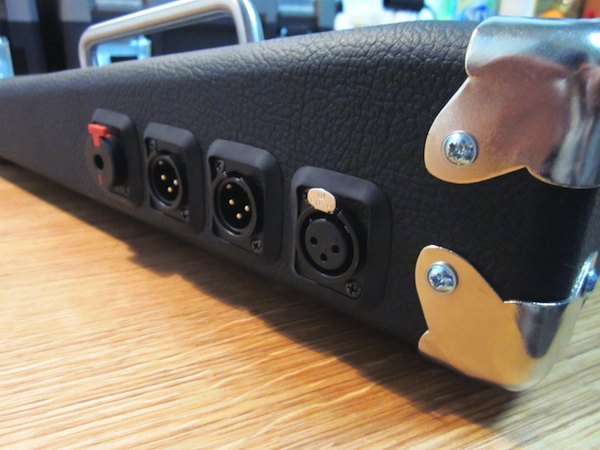

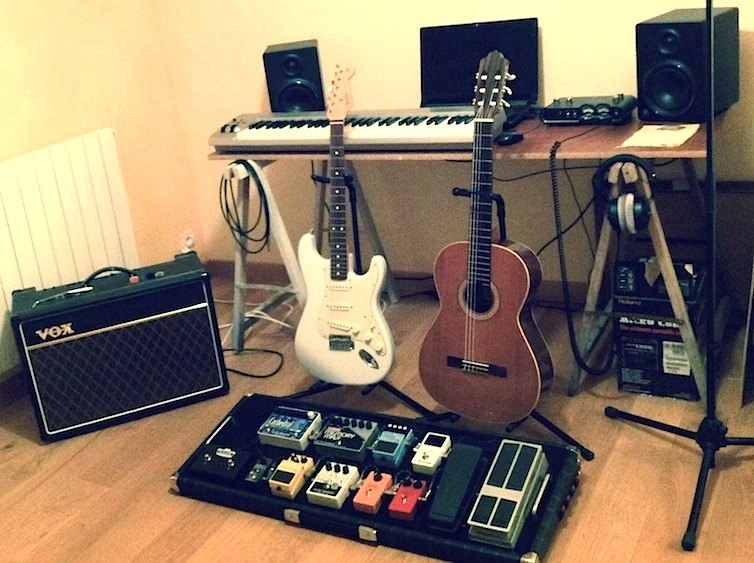

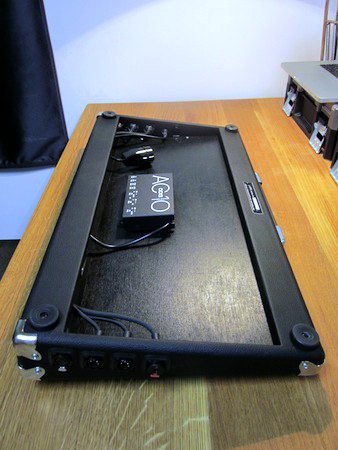

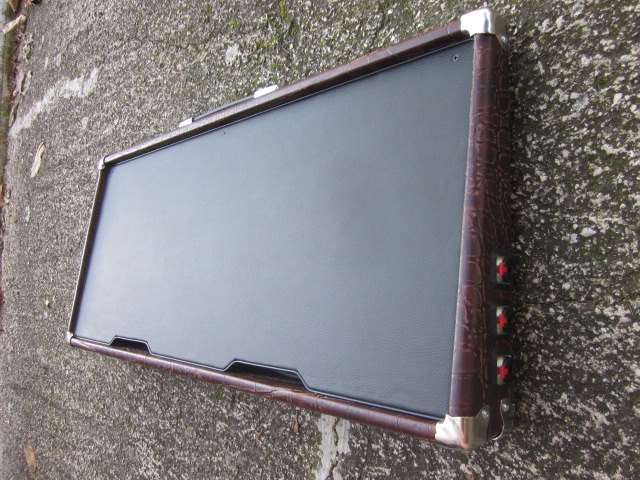

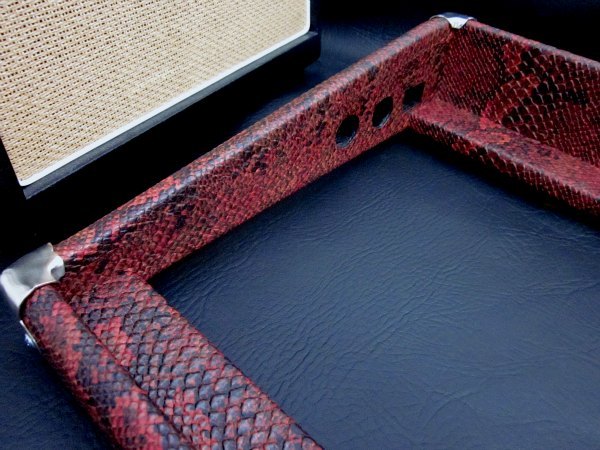

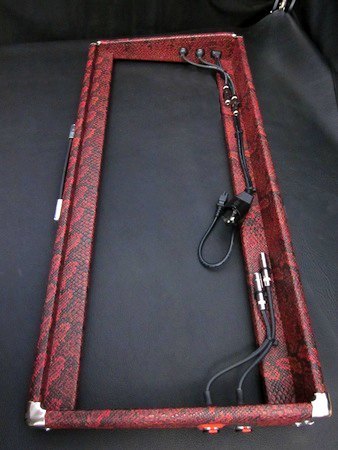

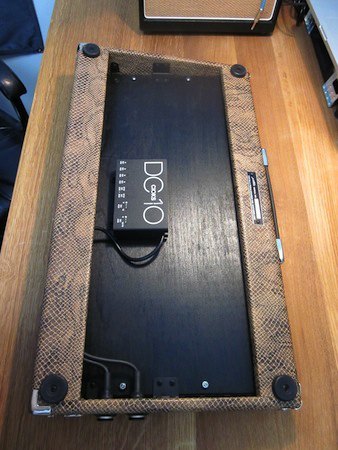

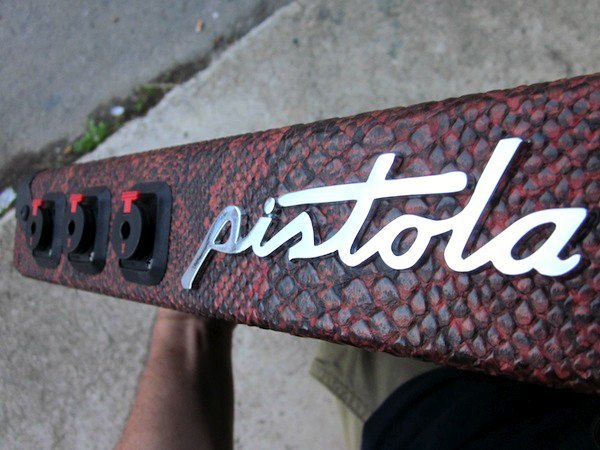

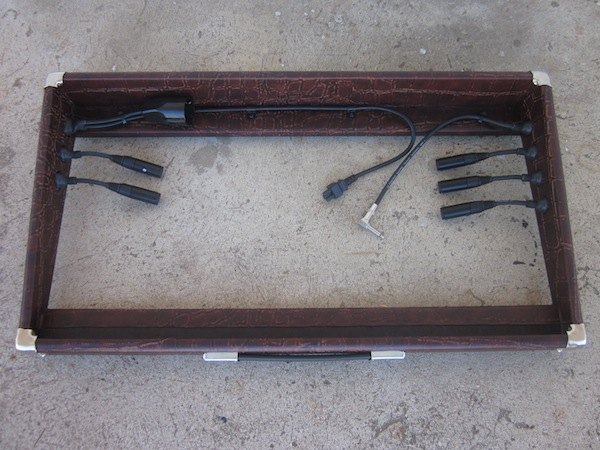

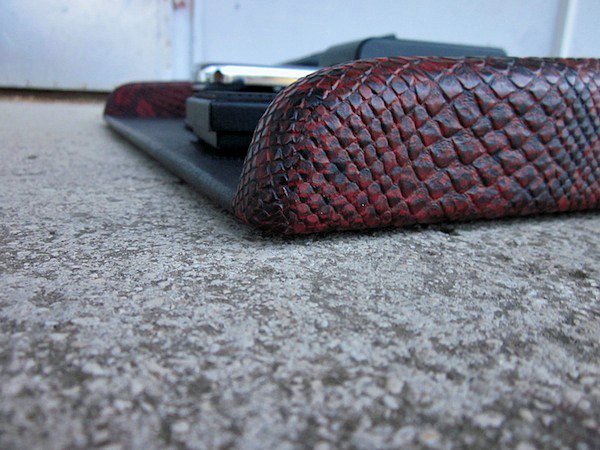

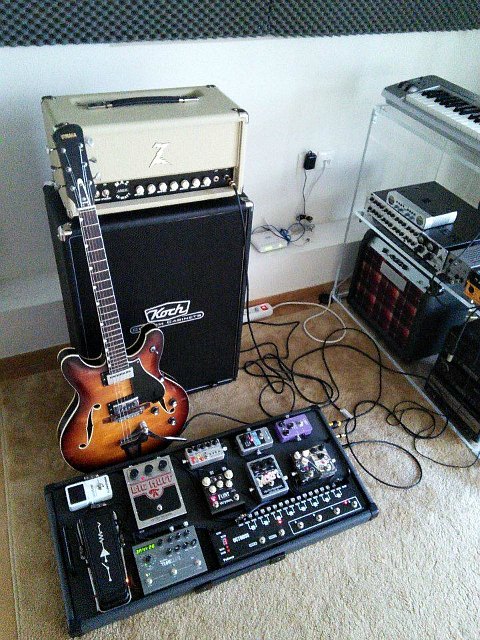

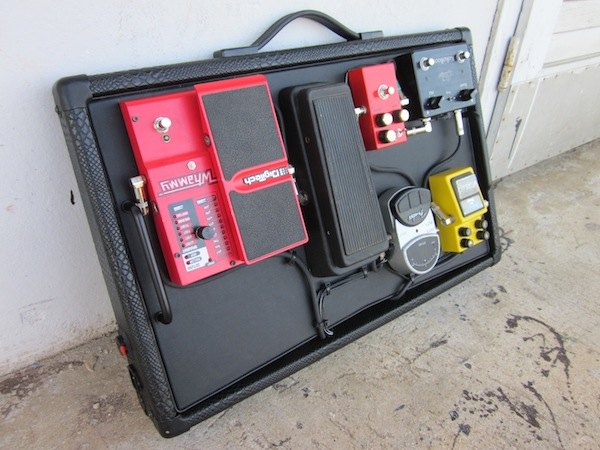

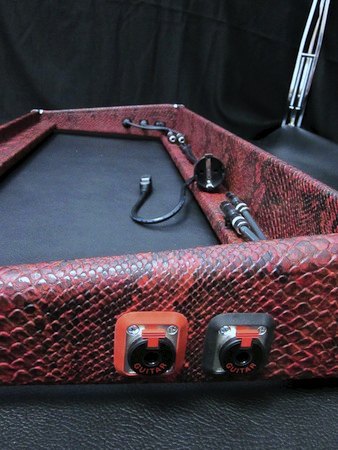

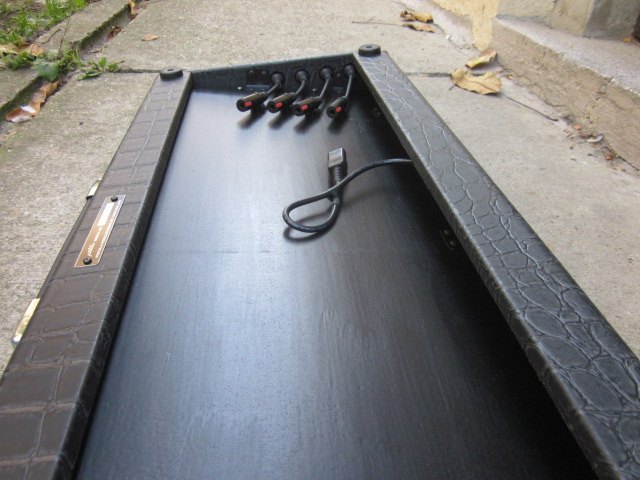

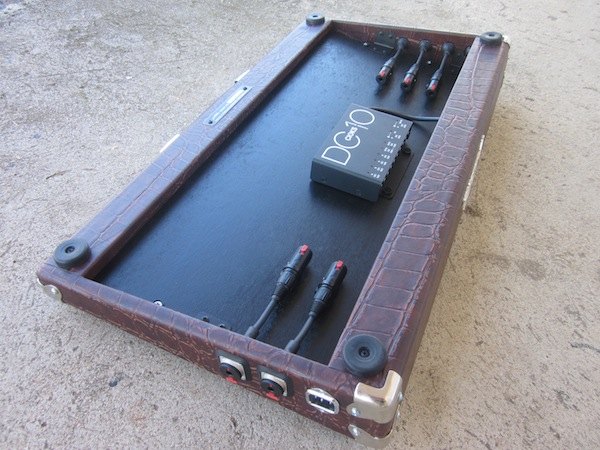

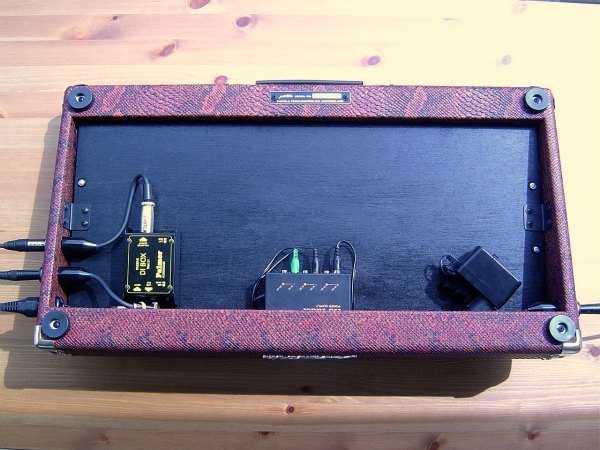

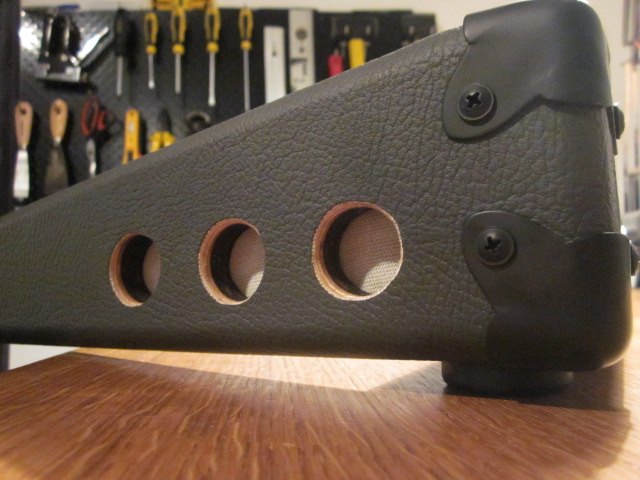

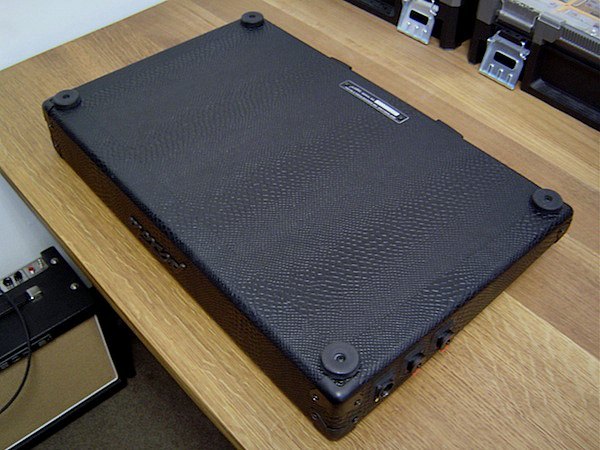

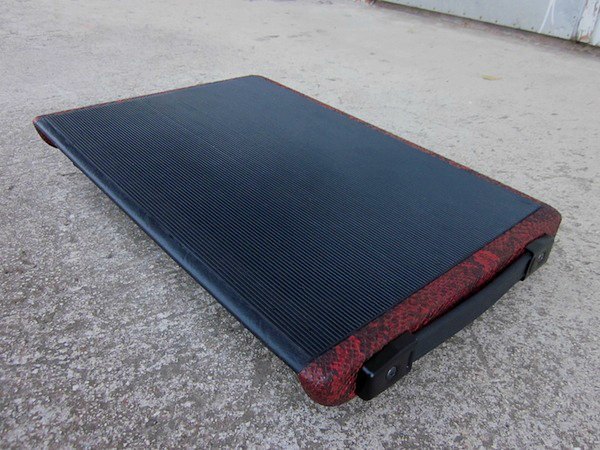

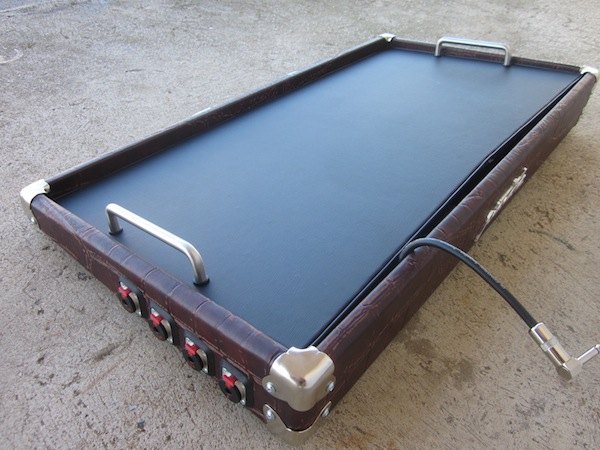

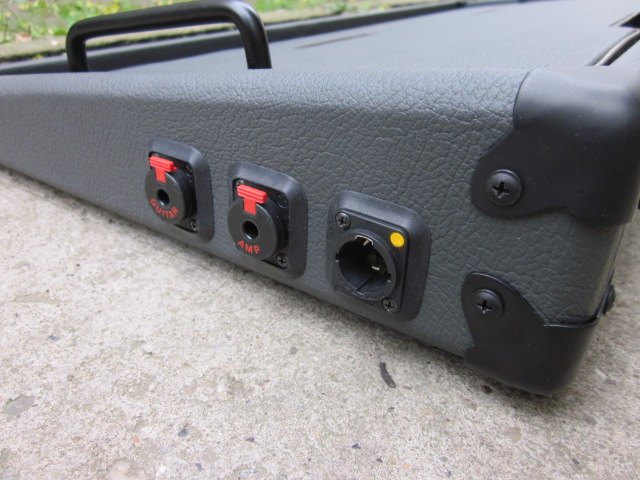

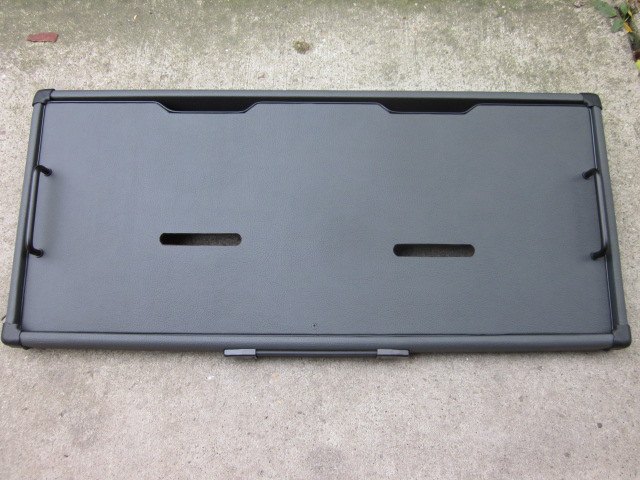

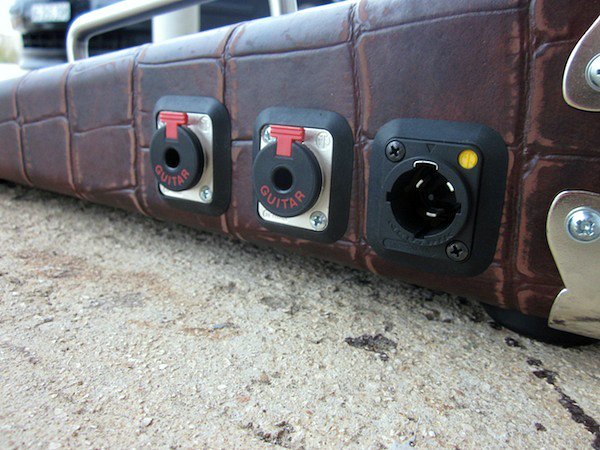

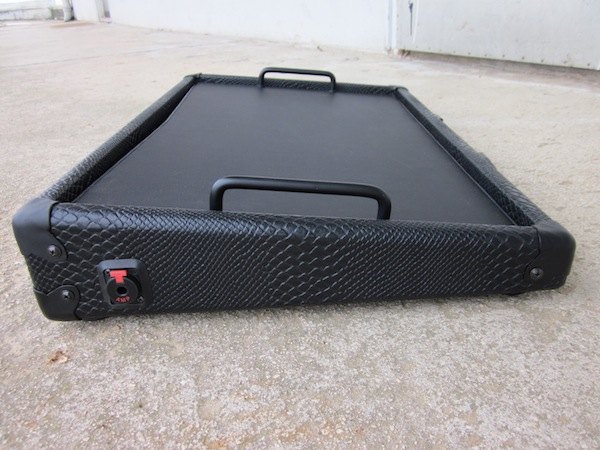

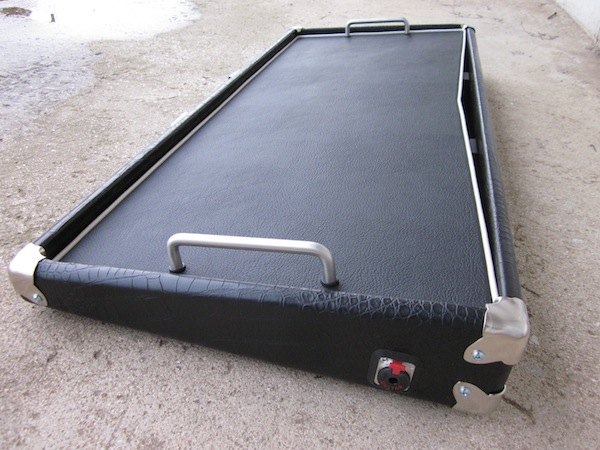

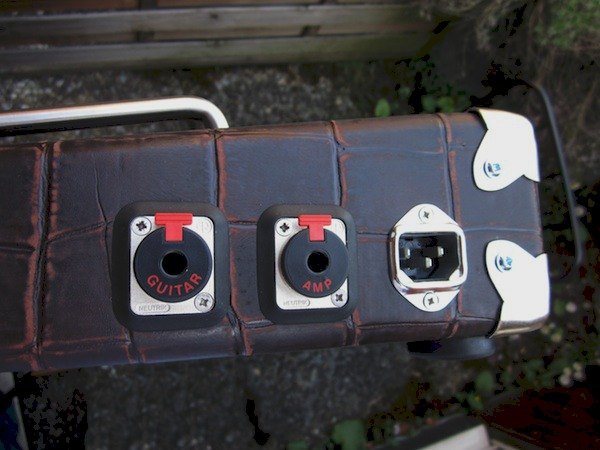

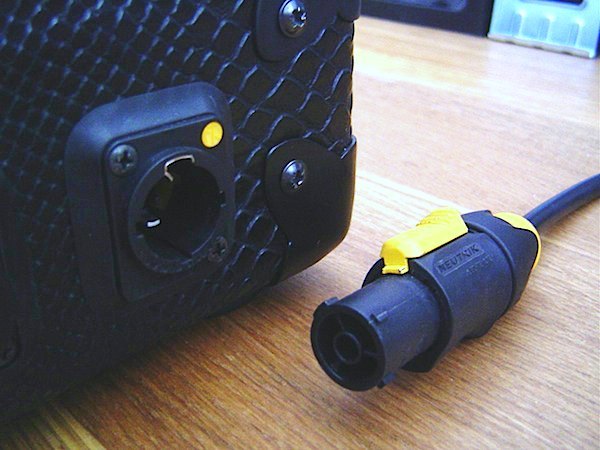

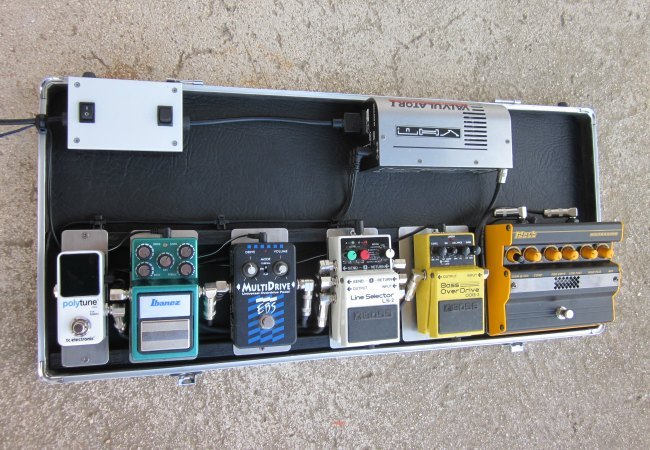

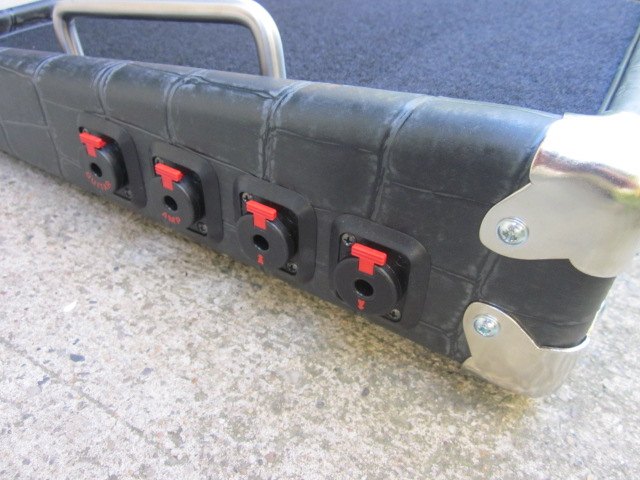

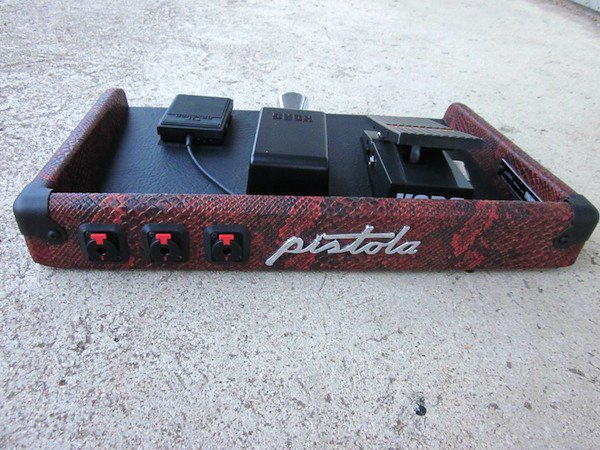

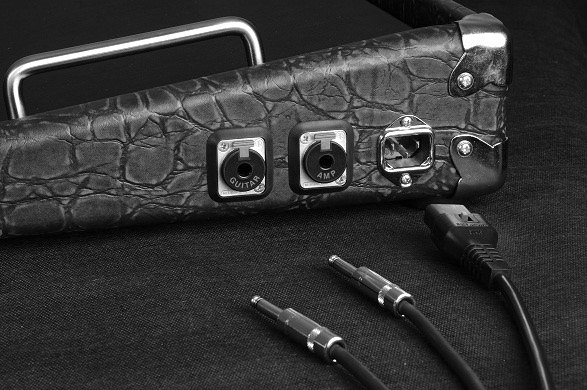

WorkshopMaking of Pistola
